Temperature measurement

Please see our offer:

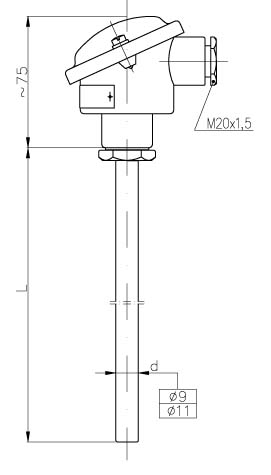

Temperature sensors type TS-11 are dedicated to measure temperature of liquids and gases from technological processes in all industrial branches. They are applicable to mount in clamp handle which allowed to set any operating length L.

Measurement range
Resistor Pt100: -200 - +550ºC Thermocouple J,K: -40 - +600ºC
Measuring principles
1 lub 2xPt100, class A or B, three or four wires
1 or 2xFe-CuNi (J), class 1 or 2, junction grounded or insulated
1 or 2xNiCr-Ni (K), class 1 or 2, junction grounded or insulated
External tube material
Acid resistant steel 1.4571
Operating length
L - as per client request (min. 50mm)
Type and admissible temperature of connection head
B, NA IP55 100ºC (150ºC)
Options
With transmitter 4-20mA or 0-10V
Unusual executions:
Resistors Pt500, Pt1000, Ni100, Ni1000
Other technical details followed by customer specification
Discription code

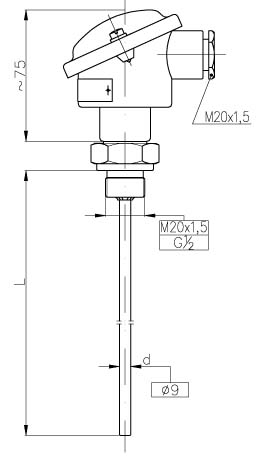

Temperature sensors type TS-12 are dedicated to measure temperature of liquids and gases in technological processes installations in all industrial branches and air conditioning systems. They are usually mounted in places where there is no necessity to keep a secure distance between the connection head and the fitting socket.

Measurement range
Resistor Pt100:-200 - +550ºC Thermocouple J,K: -40 - +600ºC
Measuring principles
1 lub 2xPt100, class A or B, three or four wires
1 or 2xFe-CuNi (J), class 1 or 2, junction grounded or insulated
1 or 2xNiCr-Ni (K), class 1 or 2, junction grounded or insulated
External tube material
Acid resistant steel 1.4571
Operating length
L - as per client request (min. 50mm)
Type and admissible temperature of connection head
B, NA IP55 100ºC (150ºC)
Options
With transmitter 4-20mA or 0-10V
Unusual executions:
Resistors Pt500, Pt1000, Ni100, Ni1000
Other technical details followed by customer specification
Discription code

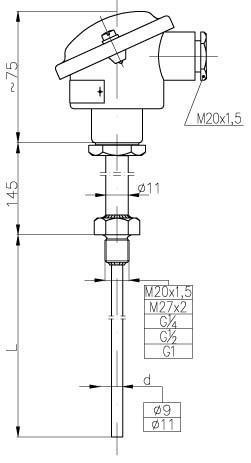

Temperature sensors TS-13 are dedicated to measure temperature of liquids and gases in technological processes in all industrial branches. They are used in installation where, because of high temperature and thermal conductivity, there is a danger of overheating the connection head.

Measurement range
Resistor Pt100: -200 - +550ºC Thermocouple J,K: -40 - +600ºC
Measuring principles
1 lub 2xPt100, class A or B, three or four wires
1 or 2xFe-CuNi (J), class 1 or 2, junction grounded or insulated
1 or 2xNiCr-Ni (K), class 1 or 2, junction grounded or insulated
External tube material
Acid resistant steel 1.4571
Operating length
L - as per client request (min. 50mm)
Type and admissible temperature of connection head
B, NA IP55 100ºC (150ºC)
Options
With transmitter 4-20mA or 0-10V
Unusual executions:
Resistors Pt500, Pt1000, Ni100, Ni1000
Other technical details followed by customer specification
Discription code

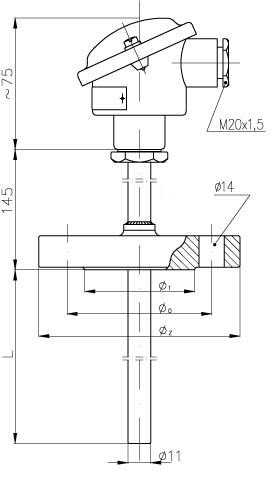

Temperature sensors TS-14 are dedicated to measure temperature of liquids and gases in industrial pipelines and pressure tanks where there is reasonable to mount them by flange.

Measurement range
Opornik Pt100:od -200 do +550ºC Resistor Pt100: -200 - +550ºC Thermocouple J,K: -40 - +600ºC
Measuring principles
1 lub 2xPt100, class A or B, three or four wires
1 or 2xFe-CuNi (J), class 1 or 2, junction grounded or insulated
1 or 2xNiCr-Ni (K), class 1 or 2, junction grounded or insulated
External tube material
Acid resistant steel 1.4571
Operating length
L - as per client request (min. 50mm)
Type and admissible temperature of connection head
B, NA IP55 100ºC (150ºC)
Options
With transmitter 4-20mA or 0-10V
Unusual executions:
Resistors Pt500, Pt1000, Ni100, Ni1000
Other technical details followed by customer specification
Discription code
